SMT Reflow Ovens - BTU International
BTU International

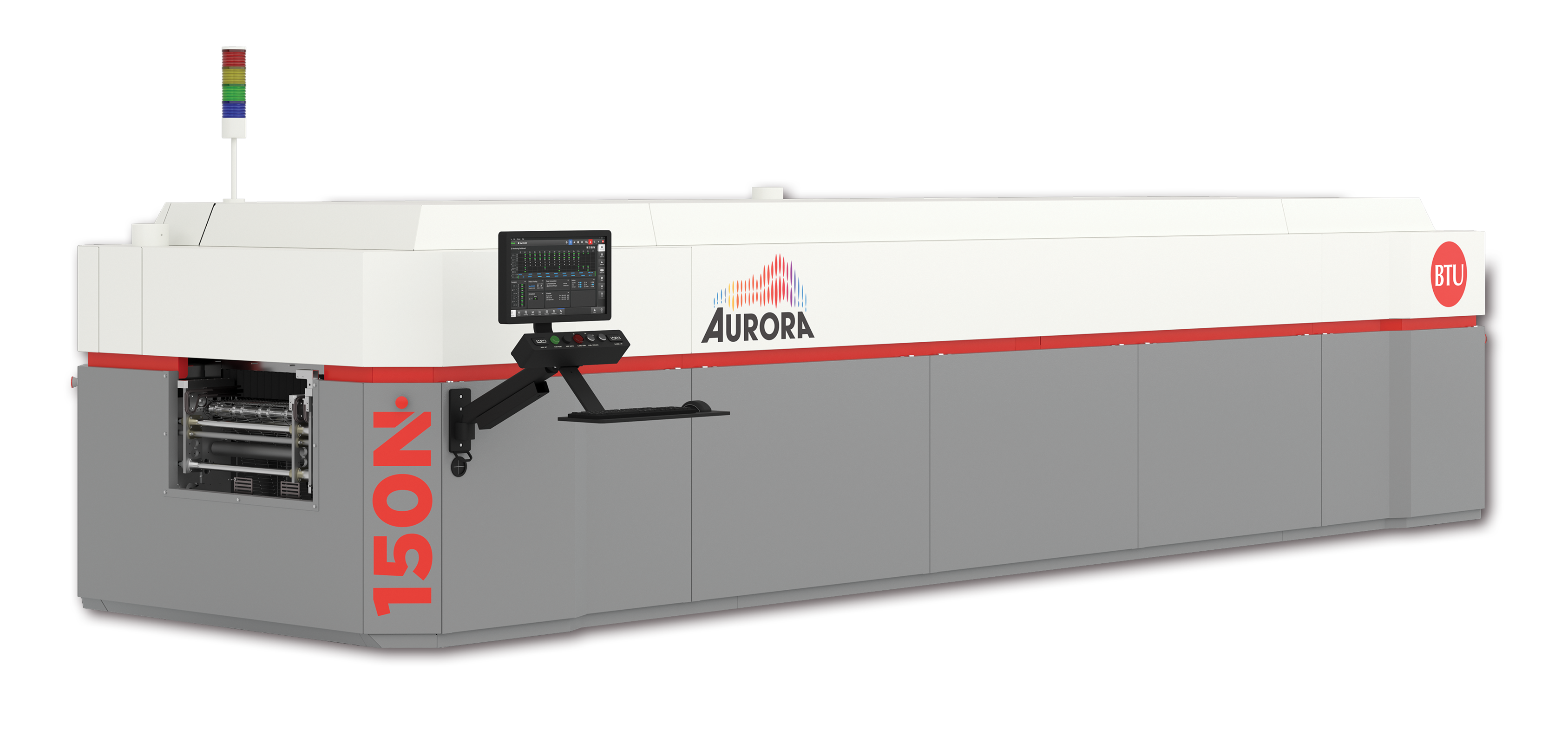

The Next Generation Reflow Oven Platform -AURORA
Aurora, the newest reflow oven platform, is designed based on years of expertise and leadership from BTU, the makers of the industry’s best performing reflow ovens. As the latest in a long line of world-class thermal systems, Aurora has quality and innovation in its DNA.
- Modern conveyor options
- Fully updated user interface
- Integrated AquaScrub flux management technology
- Innovative Smart Power energy savings software
- Advanced process control technologies
- Exclusive closed-loop convection control technology
- Flexible zone configuration for optimal heating or cooling requirements
BTU International
The Next Generation Reflow Oven Platform -AURORA
Aurora, the newest reflow oven platform, is designed based on years of expertise and leadership from BTU, the makers of the industry’s best performing reflow ovens. As the latest in a long line of world-class thermal systems, Aurora has quality and innovation in its DNA.
- Modern conveyor options
- Fully updated user interface
- Integrated AquaScrub flux management technology
- Innovative Smart Power energy savings software
- Advanced process control technologies
- Exclusive closed-loop convection control technology
- Flexible zone configuration for optimal heating or cooling requirements
BTU International

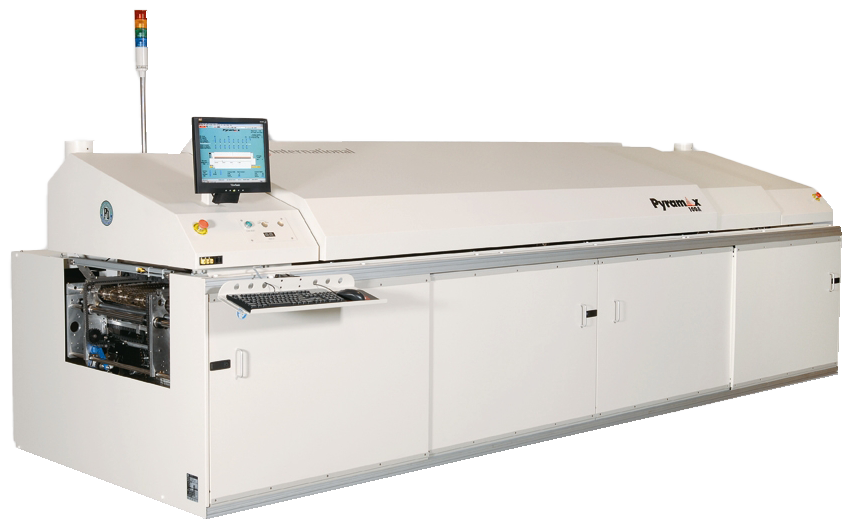

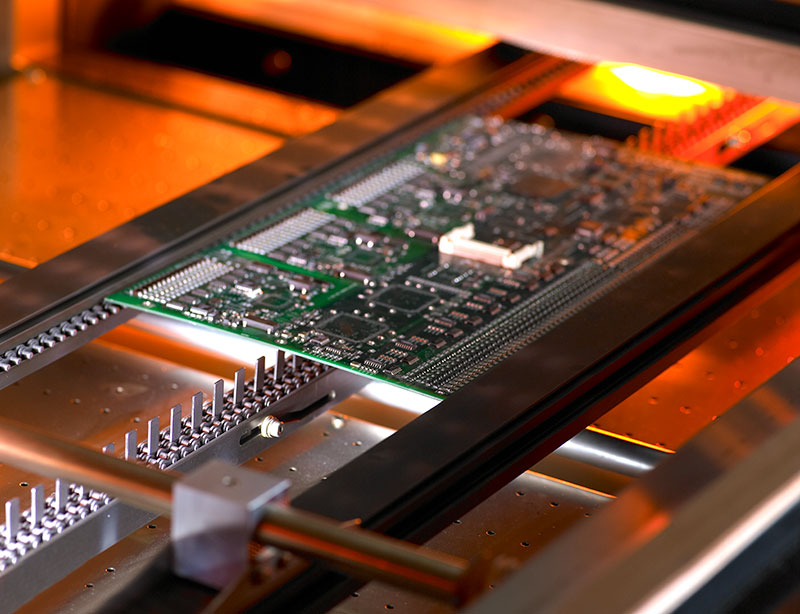

Pyramax™
Pyramax™ reflow ovens provide optimized lead-free processing for the ultimate productivity and efficiency. BTU’s exclusive closed-loop convection control provides precise heating and cooling, programmable heat transfer, and reduced nitrogen consumption, adding up to the lowest Cost of Ownership in the industry. With 6, 8, 10, and 12-zone air or nitrogen models, 350oC maximum temperature, and a comprehensive menu of options, Pyramax™ reflow ovens are the industry’s most versatile performers and best value.
 |
 |
|---|
BTU International

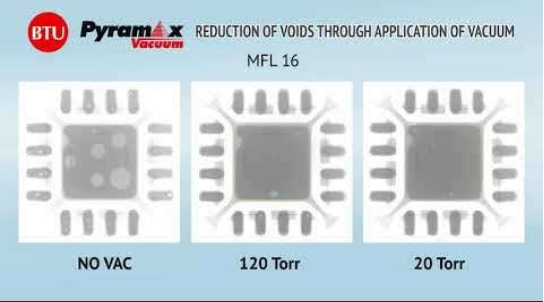

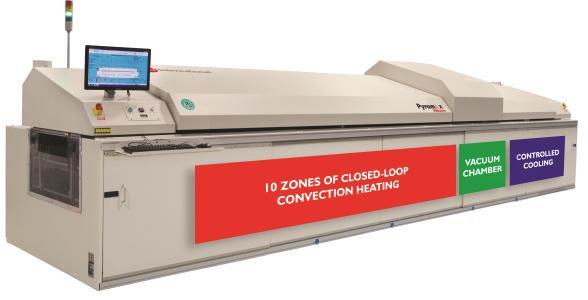

Pyramax Vacuum
VACUUM REFLOW OVEN FOR HIGH-VOLUME
- Thermal Uniformity +/-2°C
- Superior Profile Control
- Full MES Integration
The Pyramax Vacuum reflow oven has been designed with the requirements of large EMS/high-volume automotive customers in mind. The unit is configured with 10 zones of closed loop convection heating and a maximum production width of 457 x 457mm (18 x 18 inches) inches under vacuum operation. Nitrogen atmosphere capable, the Pyramax Vacuum reflow oven offers a maximum process temperature of 350° C. The unit features integrated controls with BTU’s proprietary Wincon™ windows-based control system and full integration with factory MES/Industry 4.0, including vacuum parameters. Existing Pyramax customers can easily transfer their process to the new Pyramax Vacuum reflow oven.
BTU International

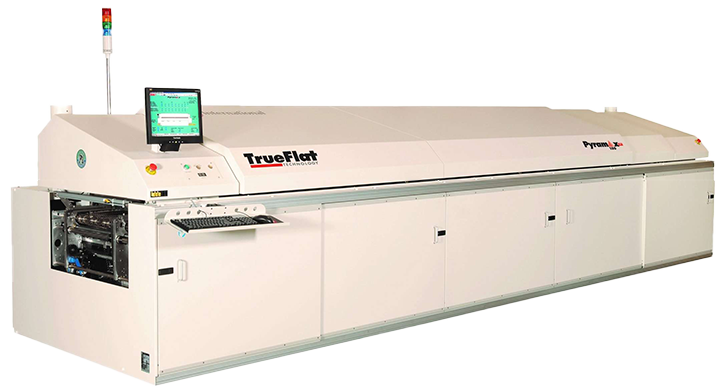

Pyramax TrueFlat
NEW REFLOW OVEN TECHNOLOGY FOR SUBSTRATE
- Low maintenance
- No vacuum pump
- Superior thermal
Built on the industry-leading Pyramax platform, TrueFlat is a unique reflow oven configuration to stop substrate warpage.Bottom chamber of a Pyramax TrueFlat convection reflow oven. Designed for substrate thicknesses of 0.15 to 0.30mm, TrueFlat technology ends die tilt. The result is consistent and repeatable flatness, and superior thermal uniformity due to the Pyramax’s closed-loop convection heating.
The new Pyramax with TrueFlat technology does not impact reflow oven footprint, making it easy to transition from existing reflow processes. Easy to maintain with no vacuum pump, the system offers simple operation and full integration with BTU’s proprietary WINCON™ Windows-based software including factory host/MES interface for Industry 4.0 compliance.
BTU International

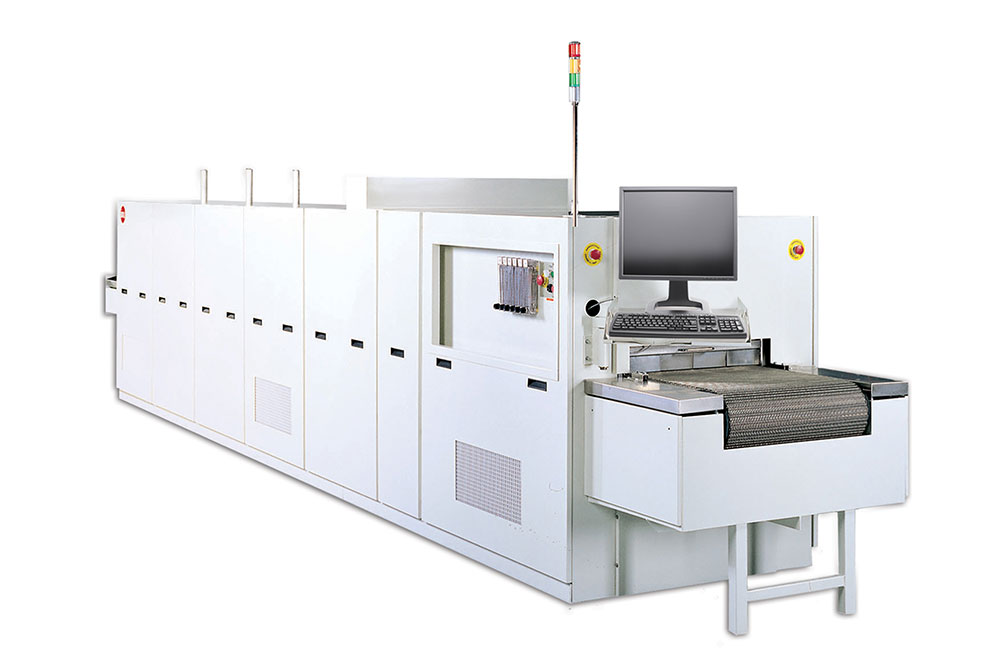

Belt Furnaces with Precise Atmosphere and Temperature Control
BTU’s custom high-temperature belt furnaces have been manufactured in Massachusetts for over six decades with ISO 9001 quality certification safeguarding that each unit is subject to exacting build and test criteria.
BELT FURNACES WITH PRECISE ATMOSPHERE AND TEMPERATURE CONTROL

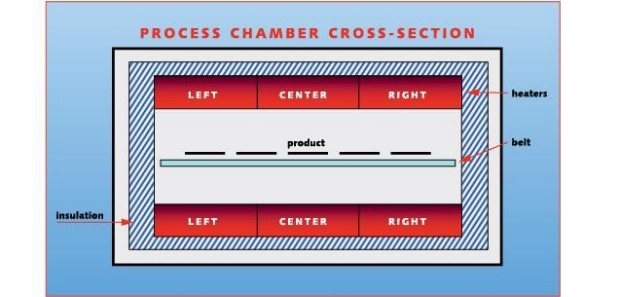

BTU’s custom belt furnaces come in two basic configurations: muffle or muffle-less.
A muffle furnace is typically used in applications where control of temperature and atmosphere are of utmost concern – or for special process atmospheres such as Hydrogen.
A muffle-less furnace has operational advantages for use cases where the furnace will be heated up and cooled down frequently while still providing precise control of temperature and atmosphere.
The features and characteristics of the belt furnaces that are usually customized based on the customer’s application and throughput needs are:
*Overall furnace length
*Maximum process temperature
*Process chamber width and height (clearance)
*Number of heated zones
*Cooling length and zones
*Belt loading
*Atmosphere capabilities including control and safety considerations
|
|
|---|
Product of BSD Private Limited
CHANG-AI
CHANG-AI
Process Trace Oxygen Analyzer
- Consisted of 240×128 LCD to show the oxygen concentration and various setting data
- Isolated 4-20mA DC standard digital output, 0-100mV, 0-1V or 0-10V
- RS232 two-way communication serial interface, two-way single-pole single-throw alarm function
- Automatic temperature compensation
- Unique inside protective gas path
- Isolated 4-20mA DC standard digital output, 0-100mV, 0-1V or 0-10V
CHANG-AI

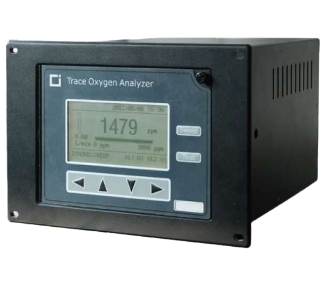

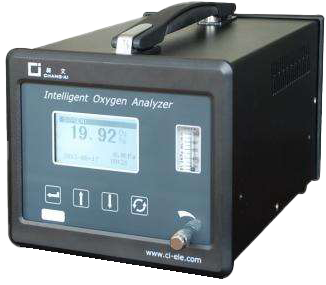

Trace Oxygen Analyzer
- Intelligence, good stability, high reliability and long calibration cycle
- Oxygen Concentration, menu, PUT DATA and instrument working state are shown on the 128×64 LCD, with one toughened glass on the surface of screen to protect the LCD and button
- Pressure Testing Function
- Proportional Valve Controlling Function
- Latest touch the key technology to extend the service life of button
- Three-way single-pole and single throw alarm function
- RS232/RS485（optional）two-way communication function
- Two combinations of isolated analog output signal, set up analog output mode freely through menu.
Product of BSD Private Limited
Thermal Process Devices
Group 1
Group 2
Group 3
